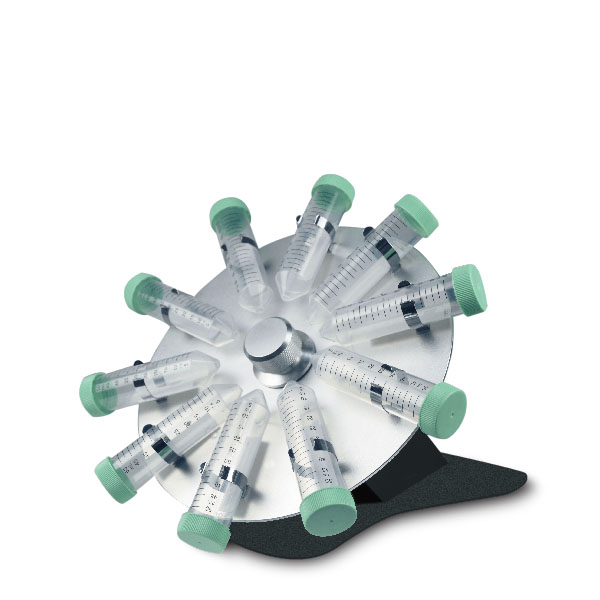

로테이션믹서, Rotation Mixer, YC-80

Product description:
The rotary mixing solution YC-80/40 is mainly used for tissue culture, sample extraction, sedimentation rate determination.
E.g. blood sample mixing, wet-chemical analysis of radio-immunity, glucose, protein, DNA, cellula, urine, enzyme, etc.
It also widespread applied in biochemistry, organism, cellula, immune, chemistry, flora and fauna analysis, clinical experiments, etc.
It is capable of long-time continuously uniform working, and is very convenient to operate.
Gradient of the turntable is changed freely.
It can also working in the thermostat incubator
특징
1. Humanized designed operation keyboard. LED display time and speed.
2. Several optional turntable supplied, suit for the tubes from 1.5ml to 50ml.
3. The turntable’s gradient can be adjusted from 0 to 90 degree.
4. Timing function. Time range from 0 to 9999min, LED display remaining time. Beep alarm when program time ends.
5. DC brushless motor, speed control accuracy, long life and maintenance-free.
규격
| Model |
YC-80 |
YC-40 |
| Gradient Range |
0˚ ~ 90˚ |
45°(Fixed angle) |
| Speed Range |
10 ~ 80 rpm |
40RPM (Fixed speed) |
| Timing |
9999 min |
on/off |
| Temperature Restriction |
< 65℃ (Dry Air) |
| Net Weight |
4.5 kg |
|
| Dimension(mm) |
W 220 x D 236 x H 246 |
260 x 229 x 148 |
| Input Voltage |
AC 85 ~ 265V |
| Optional Turntable |
| YC-A |
50mL V-Bottom tube x 10 |
| YC-B |
15mL V-Bottom tube X 18 |
| YC-C |
1.5mL tube x 64 |
| YC-D |
Additional foam platform:50ml×12 +15ml×12+1.5ml×30 |
| YC-DN |
Double turntable connector |

. |
