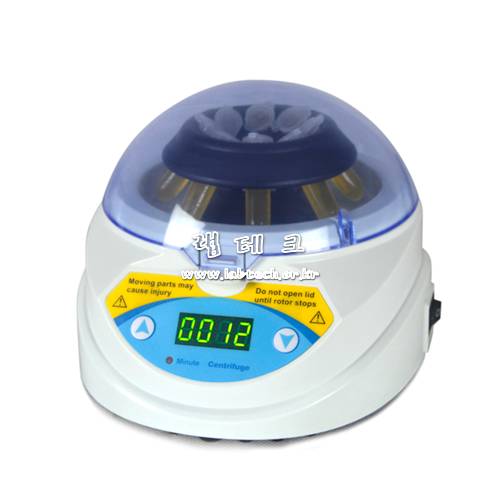

Mini Centrifuge, Mini-7K, 소형 원심분리기








The mini centrifuge series MINI-4K/6K/7K/10K/10K+ is perfect designed with novel and unique appearance.
It is pretty and skillful, equipped with 2 types of rotors and several tube carriers for 2.0mL / 1.5mL / 0.5mL / 0.2mL tubes and 0.2mL x 8 PCR tube strips.
It is designed user-friendly.
Open / Close the cover will automatically start / stop the centrifuge.
Mini centrifuge series are built-in timing function.

Application
u Extract serum from blood
u Extract the supernatant from a variety of samples
u Rapid subsidence of samples
u Separation of trace blood cells
u Microbial sample processing
u PCR experimental division centrifugal



특징
u Large radius rotor with 8tube holes, centrifugal force is 1.5 times bigger than ordinary 6hole rotor at the same rolling speed.
u The cover press-button is outward designed with start / stop function. Press the button, the cover will open automatically to 95º
    which is very convenient for one-hand operation.
u The rotor is clip-on fixed. Very convenient for rotors exchanging yet fixed solid reliable.
u LED display speed (MINI-10K+) and timing.
u Working silent and stable. Free-maintenance motor, long-life and safe.
u Delicate appearance yet multi-purpose to meet different experiments.



규격


			| Model  |
			Mini-4K |
			Mini-6K |
			Mini-7K |
			Mini-10K |
			Mini-10K+ |


			|  Speed  |
			4,000 rpm  |
			6,000 rpm  |
			7,000 rpm  |
			10,000 rpm  |
			3,000 ~ 10,000 rpm |


			| (1,000 rpm step)  |


			|  RCF |
			1,200 g  |
			3,000 g  |
			3,400 g  |
			7,500 g  |
			1,000 ~ 7,500 g  |


			 Sample
			 capacity  |
			8x2.0mL/1.5mL/0.5mL/0.2mL tube
			(additional 0.5mL & 0.2mL tube carriers)

			2x8x0.2mL PCR tube strip  |
			8x2.0mL/1.5mL/0.5mL/0.2mL tube
			(additional 0.5mL & 0.2mL tube carriers) |
			8x2.0mL/1.5mL/0.5mL/0.2mL tube
			(additional 0.5mL & 0.2mL tube carriers)

			2x8x0.2mL PCR tube strip
			(tube strip only used when speed≤6000rpm) |


			|  Time range  |
			1 s ~ 99 min 59 s  |
			1 s ~ 999 min  |


			|  Noise  |
			≤45 dB  |
			≤55 dB  |


			|  Dimension  |
			176 x 156 x 121 mm |


			|  Weight  |
			≤1.5kg  |


			|  Power  |
			220V / 110V, 50 ~ 60Hz  |







. |
