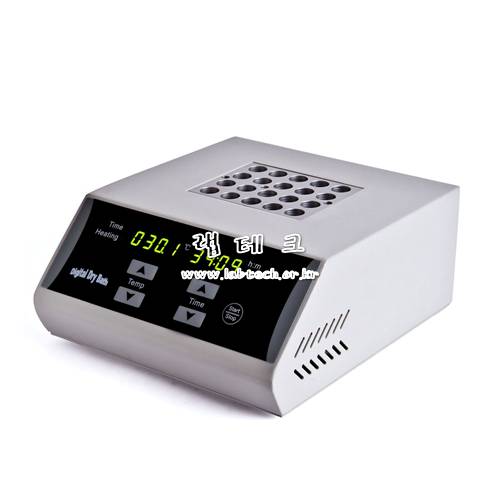

히팅/쿨링 블록, Thermo Dry Bath, DTH-100
* 프로그램 연동하여 사용가능 : 5단계?
* 다양한 종류의 블럭 사용 : 0.2 ~ 50ml
* 빠른 가열속도 상온에서 100도 : 15분이내
* 히팅 + 쿨링?
* 블럭 K, L, N을 선택 시 Cover B도 선택을 하셔야 합니다.

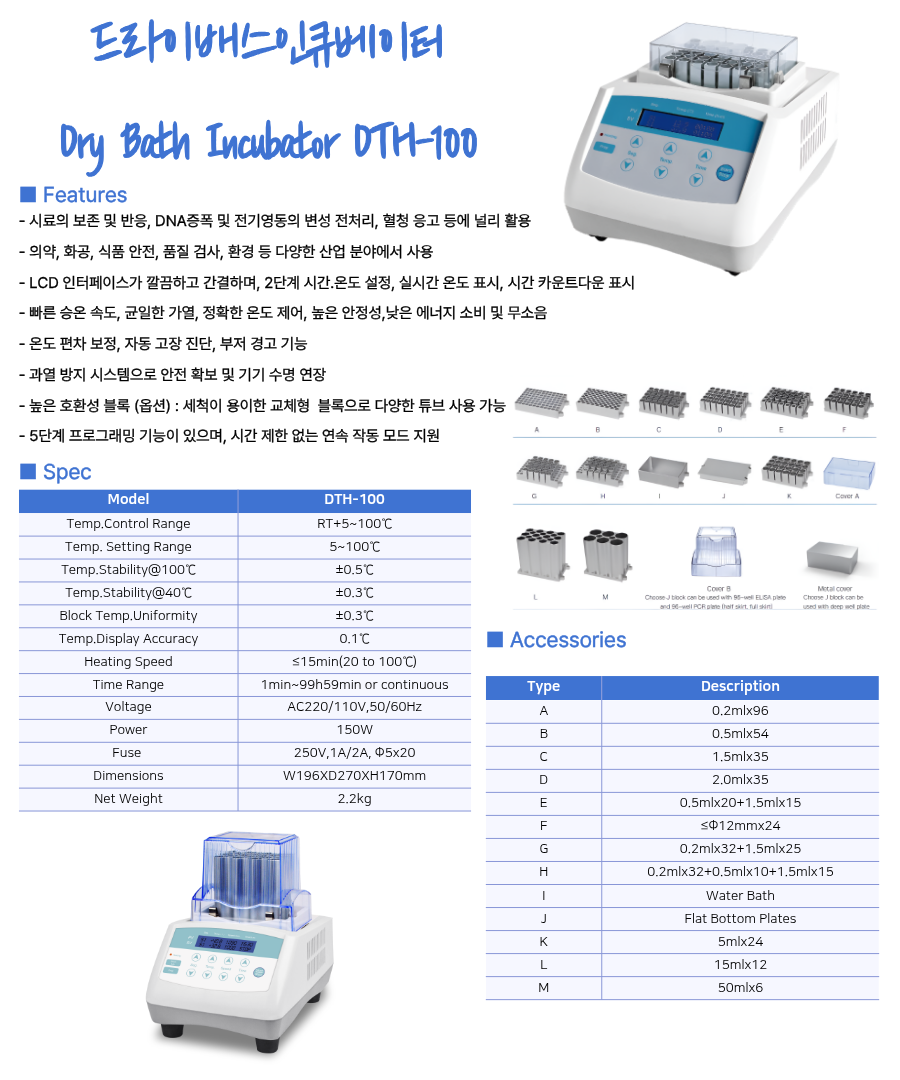

DTC-100/DTH-100 Dry Bath Incubator is a microprocessor-controlled device, high precision of temperature control,
sample preparation parallelism, as an alternative to the traditional water bath device.
It can be widely used in samples cultivation, preservation and reaction, DNA amplification, Pre degeneration of electrophoresis and solidification.
Application of industry includes the pharmaceutical, chemical, food safety, environment, quality inspection.
Product features
u LCD display, simple interface, double time and temperature settings, Simultaneous display of set temperature display, time diminishing
display
u High heating speed, uniform heating, accurate temperature control, high stability, low energy consumption and no noise.
u Built in temperature calibration function, automatic fault detection and buzzer alarm function.
u Built in over-temperature protection device, safe and reliable use, prolong the service life of the machine.
u Compact and tight, small occupied space, freer and easier.
u Various blocks for convenient replacement, cleaning and disinfection.
Technical parameters
Model |
DTC-100
(cooling) |
DTH-100
(heating) |
Temp. control range |
-10℃~100℃ |
RT+5℃
~100℃ |
Temp. control accuracy |
≤±0.5℃ (@100℃) |
Block temp. difference |
0.3℃ (@40℃) |
Block temp. uniformity |
≤±0.3℃ |
Display accuracy |
0.1℃ |
Heating time |
≤15min (from 20℃ to 100℃) |
Timing range |
99hr 59min |
Max. temp. |
100℃ |
Cooling time |
≤30min from ambient to
ambient-30℃ (detect at 26℃
of ambient temperature) |
/ |
Max. power |
150W |
Net weight |
2.2kg |
Dimension |
L270 x W190 x H170mm |
Block selection |
Refer to “Exchangeable blocks
for DTC-100/DTH-100 series” |
Exchangeable blocks
Type |
Parameter |
Max. Temp |
A |
96x0.2ml PCR plate |
100℃ |
B |
54x0.5ml |
100℃ |
C |
35x1.5ml |
100℃ |
D |
35x2.0ml |
100℃ |
E |
20x0.5ml + 15x1.5ml |
100℃ |
F |
24xdia. ≤Φ12mm |
100℃ |
G |
32x0.2ml + 25x1.5ml |
100℃ |
H |
32x0.2ml + 10x0.5ml + 15x1.5ml |
100℃ |
I |
103x67x30 (Water bath block) |
100℃ |
J |
96x0.2ml plate (Flat bottom) |
100℃ |
K |
24x5ml (max. speed to 600rpm) |
100℃ |
L |
12x15ml (max. speed to 600rpm) |
100℃ |
M |
6x50ml (max. speed to 600rpm) |
100℃ |
N |
Customized |
100℃ |
Cover A |
Suit for block A~J |
/ |
Cover B |
Suit for block K, L, M |
/ |
MIX-A |
96x0.2ml tube stand |
/ |
MIX-B |
24x0.5ml tube stand |
/ |
MIX-C |
24x1.5/2.0ml tube stand |
/ |
. |
