 BIO관련기기  히팅/쿨링블록

상품명 : 쿨블록/MINIC-100I
· 정가금액 :   0원
· 판매금액 :   1,089,000원 (수량,부품변경,추가제품 반영금액)
· 제조원 :   MiuLab
· 제품담당자 :   (주)랩테크
· 모델명 :   MINIC-100I
· 수량 :
개


.



Mini Cool Block, 소형 쿨링 블록, MINIC-100I



블록이 포함된 상태의 금액입니다.





The MINI series metal bath adopt the microcomputer to control the semiconductor refrigeration or the coating heating.
It applies to the vehicle power supplies. Small volume, light weight, convenient movement, suitable for all occasions.
100I series products also have PCR thermal cover technology, with the prevent evaporation function. 100F products adopt the fan to cool and cool down rapidly.

특징
u Unique design, small size, light weight, convenient movement, suitable for various occasions.
u Simultaneous display of set and actual time, temperature. Built-in temperature calibration function.
u Automatic fault detection and buzzer alarm function.
u 24V DC power supply input, built-in over-temperature protection device, safe and stable.
u Various blocks for convenient replacement, cleaning and disinfection.
u Two-side heating(thermo lid) : MINIB-100I & MINIC-100I

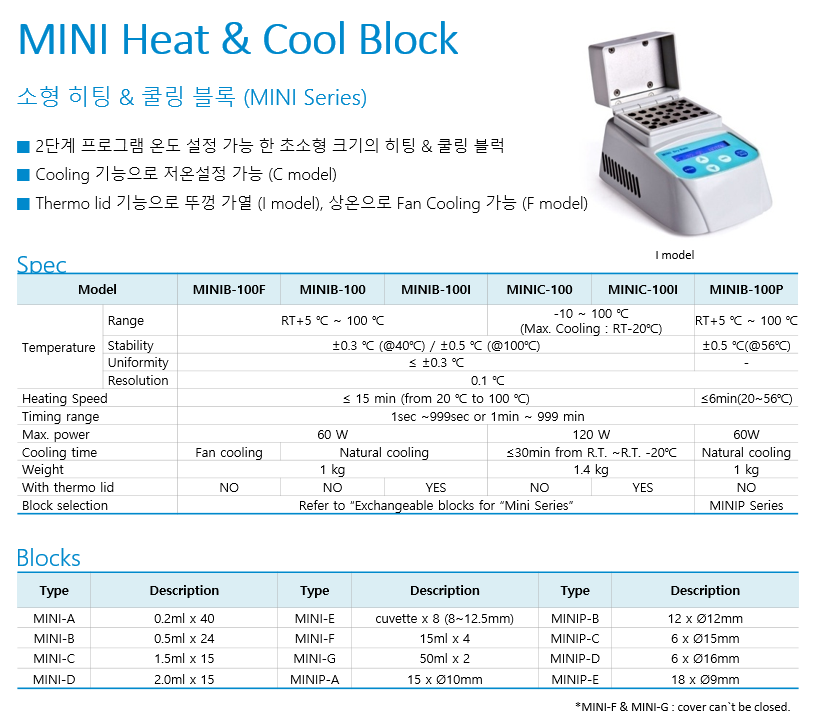

규격
Model
Specifications		 MINIB-100F
(cooling fan)		 MINIB-100 MINIB-100I
(heating)		 MINIC-100
(cooling)		 MINIC-100I
(cooling)
Temperature control range RT+5 ℃ ~ 100 ℃ -10 ℃ ~ 100 ℃
Heating time ≤ 15 min (from 20 ℃ to 100 ℃)
Temp. control accuracy ≤ ±0.5 ℃ (at 100 ℃)
Block temp. difference 0.3 ℃ (at 100 ℃)
Block temp. uniformity ≤ ±0.3 ℃
Display accuracy 0.1 ℃
Timing range 0 ~ 999 min
Max. temperature 100 ℃
Max. power 60 W 120 W
Cooling time Fan cooling Natural cooling ≤ 30min from ambient to ambient-20℃
(detect at 26℃ of ambient temp.)
Net weight ≤ 1 kg ≤ 1.4 kg
With thermo lid NO NO YES NO YES
Block selection Refer to the replacement of blocks


Exchangeable blocks for Mini series
Type Dimension Description Remark
MINI-A 0.2ml tube 40 x 0.2ml 8 x 0.2ml strip
MINI-B 0.5ml tube 24 x 0.5ml /
MINI-C 1.5ml tube 15 x 1.5ml /
MINI-D 2.0ml tube 15 x 2.0ml /
MINI-E cuvette 8 - 12.5 x 12.5mm /
MINI-F 15ml tube 4 x 15ml Cover can not be fully closed
MINI-G 50ml tube 2 x 50ml
MiniP-A   15 x Φ10mm /
MiniP-B   12 x Φ12mm /
MiniP-C   6 x Φ15mm /
MiniP-D   6 x Φ16mm /
MiniP-E   18 x Φ9mm /
Customized Customized Customized /



.
